Gas Line Sizing by Velocity Calculation — Pipeline Sizing Excel

Description

This Gas Line Sizing By Velocity Calculation spreadsheet from 3D-LABS follows ASME standards and gives instant, checkable results for practising engineers — no manual derivation required.

Gas Line Sizing by Velocity Calculation

This Gas Line Sizing by Velocity Calculation — Pipeline Sizing Excel spreadsheet provides a complete, code-compliant engineering solution.

Engineering Spreadsheet — Instant Download

What This Spreadsheet Does

Sizes gas pipelines using the velocity-based approach — the practical, industry-accepted method when noise, erosion, or pressure drop limits aren’t the controlling design criteria. Covers natural gas, fuel gas, instrument air, and process gas services.

What’s Inside the Excel File

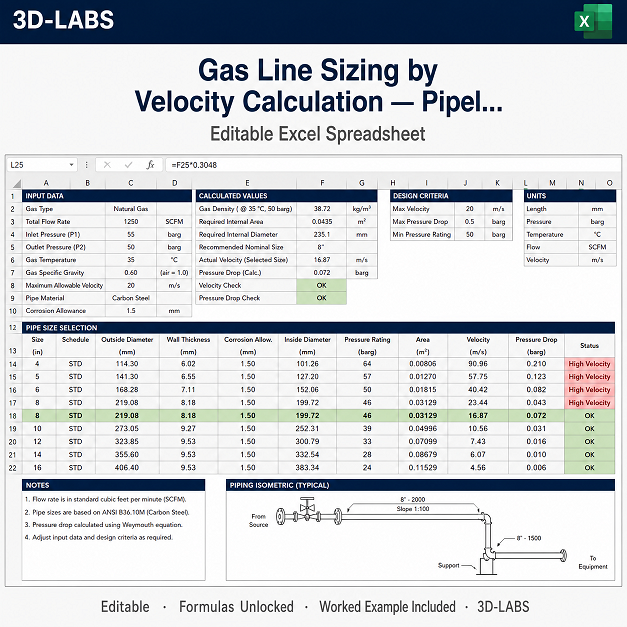

• Inputs — gas mass flow or volumetric flow, pressure, temperature, molecular weight, allowable velocity, pipe schedule
• Gas density calculation from PVT data
• Required cross-sectional area from flow ÷ velocity
• Pipe ID selection from standard schedules (sch 40, 80, 160, XS)
• Actual velocity check in selected pipe
• Erosional velocity check per API RP 14E
