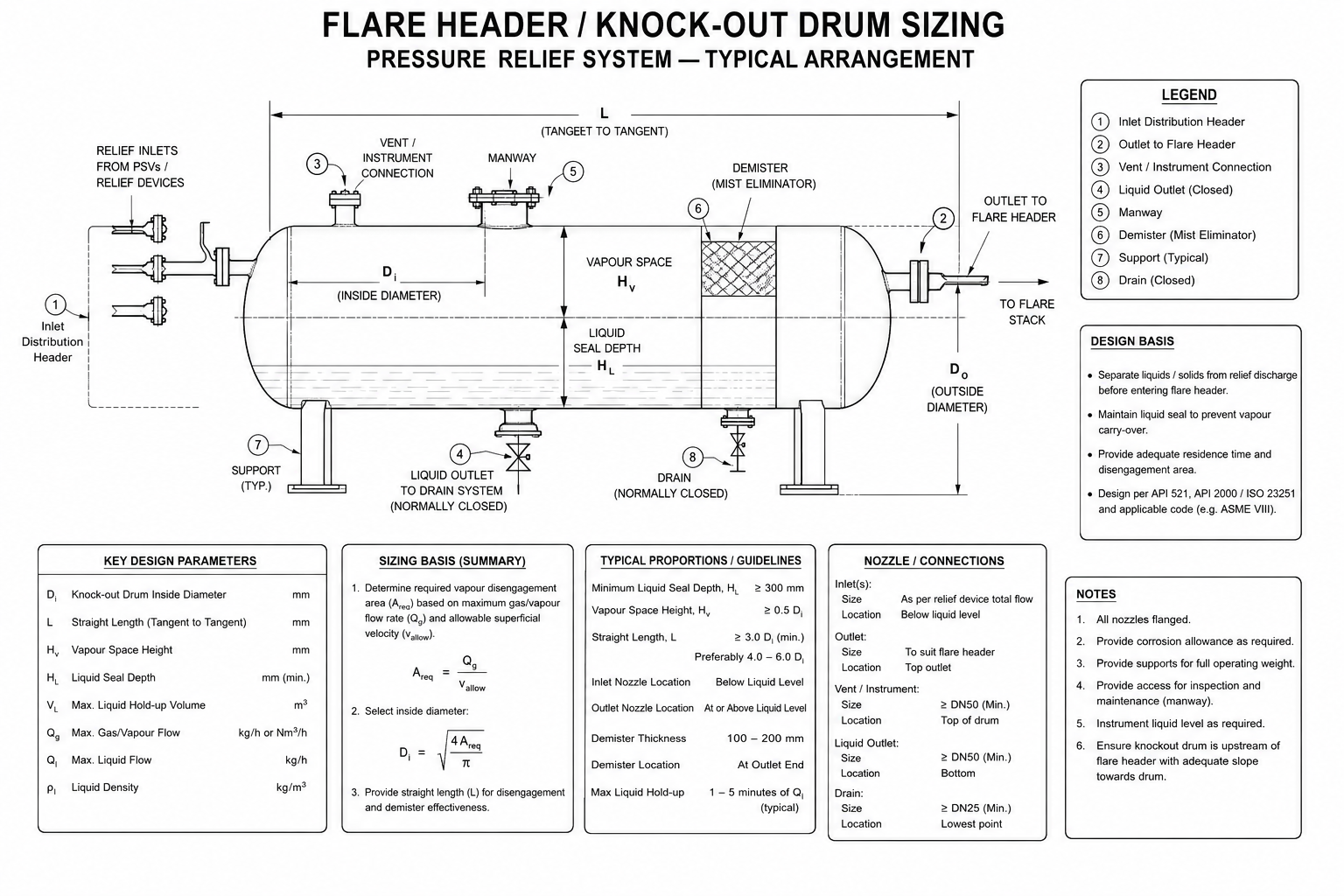

API 521 Flare Header & Knock-Out Drum Sizing β method, governing standards and output schedule
The API 521 Flare Header & Knock-Out Drum Sizing sizes a separator vessel so that the gas velocity remains below the droplet settling limit and the liquid residence time is sufficient for the required separation, and reports the vessel diameter, length and internals selection. It is applied during detailed design, during design verification by a second engineer, and again during in-service assessment when the operating basis changes. Because every intermediate quantity is reported rather than only the final answer, the calculation can be checked line by line against the governing standard without re-deriving it.
This 3D-LABS workbook is built to API 521. You supply 13 inputs and the sheet reports 6 results, with every formula left visible so each figure can be traced to the clause it comes from.
Method of calculation
The maximum allowable gas velocity is obtained from the Souders-Brown relation v = KΒ·sqrt((rho_L – rho_V)/rho_V), with K selected for the internals type; required cross-sectional area then follows from the actual gas volumetric flow. Liquid capacity is set by the required residence or surge time, and the resulting length-to-diameter ratio is checked against accepted practice for the separator configuration.
Governing standards and references
- API 521 β API Standard 521 Pressure-relieving and Depressuring Systems
- API 12J / GPSA β API Specification 12J oil and gas separators with GPSA Engineering Data Book sizing practice
Each formula cites the clause it comes from on the same row as the result it produces, so a reviewer can check the sheet line by line against the standard.
Acceptance criteria
For the calculation to be reported as acceptable, actual gas velocity must remain below the Souders-Brown limit for the selected internals, liquid residence time must meet the specified minimum, and the L/D ratio should fall within the conventional range for the orientation.
Who uses this calculation
This calculation is used by process engineers designing separation packages, facilities engineers reviewing vendor sizing, and operations staff diagnosing carry-over.
What you receive

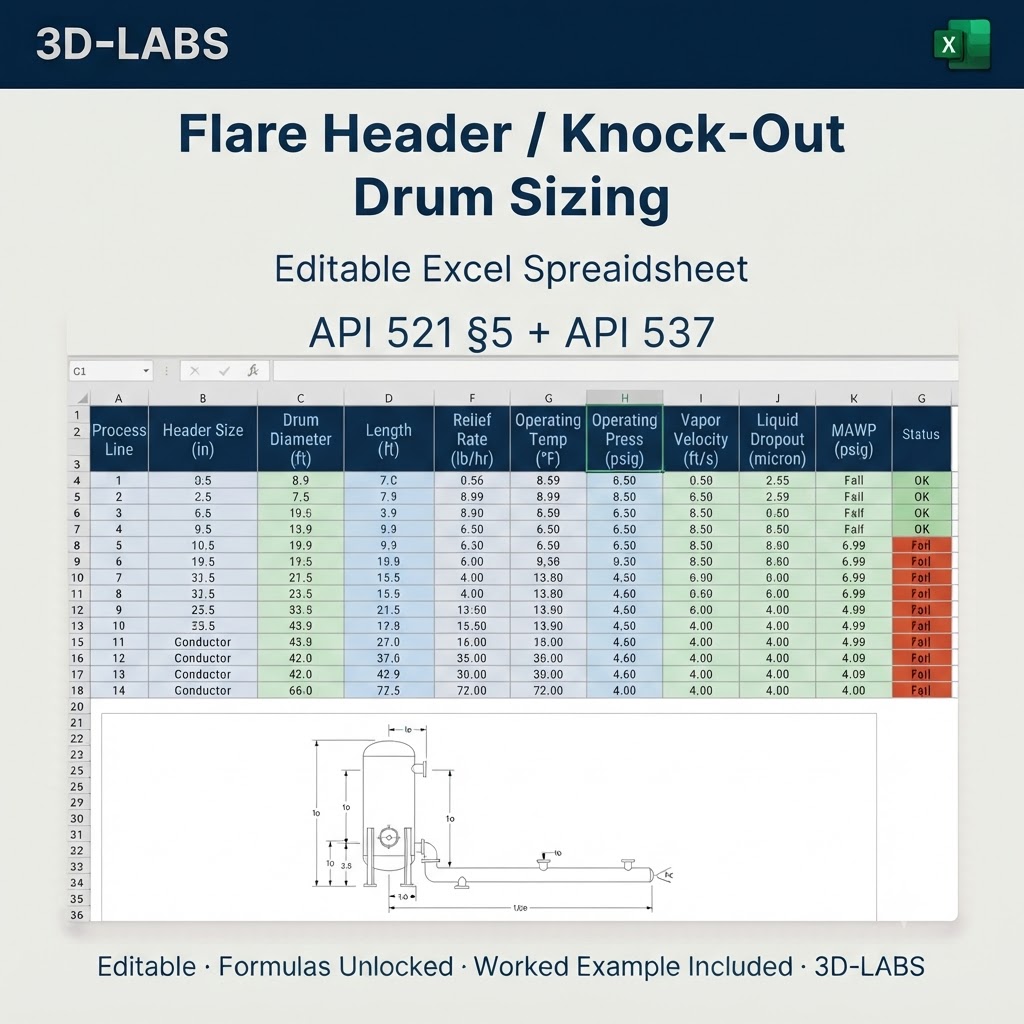

- Excel calculation file (.xlsx) β fully unlocked formulas and a clear input/output layout
- Worked example β realistic engineering values with expected outputs so you can verify the sheet against a known case
- Code references β every formula cross-referenced to API 521
- Email support β write to info@3d-labs.com with questions about inputs, methodology or results
Delivery and licence
Instant download after payment at βΉ2,699. One payment, lifetime access, no subscription. The workbook is a design aid β results must be verified by a qualified engineer before use.
What API 521 Flare Header & Knock-Out Drum Sizing β Excel calculates
API 521 Flare Header & Knock-Out Drum Sizing β Excel is an Excel-native engineering calculation tool built by 3D-LABS for chemical, process, and plant engineers working on separation, reaction, heat-transfer, and fluid-flow calculations. It is used for sizing distillation columns, reactors, heat exchangers, pumps, and pressure-relief devices. Every input is labelled and every output is traceable β the sheet is designed to be checkable, not a black box.
Codes and standards followed
API 521 Flare Header & Knock-Out Drum Sizing β Excel follows API 521. Each formula in the spreadsheet is cross-referenced to the specific code clause it implements β you can trace any calculation back to the underlying standard, which is essential for design review and regulatory sign-off.
If your project requires a different code base (e.g. converting an IS-code sheet to an ASME basis), we can produce a code-variant edition on request. Contact info@3d-labs.com for a variant quote.
What is included in your download
- The Excel calculation file (.xlsx) β fully unlocked formulas, cell-level comments, and a clear input/output layout.
- A sample worked example β realistic inputs plus expected outputs so you can validate the spreadsheet against a known case.
- User notes (PDF) β assumptions, code clauses referenced, and edge-case guidance.
- Revision history β every update to the spreadsheet is logged so you know what changed and when.
- Email support β reply within 24 hours (Monday to Saturday, IST) for questions about the spreadsheet or its use.
Software requirements
API 521 Flare Header & Knock-Out Drum Sizing β Excel runs in Microsoft Excel 2016 or later on Windows and Mac. It is also compatible with LibreOffice Calc and can be imported into Google Sheets (some formatting may shift). No macros are required and no external add-ins are needed β every calculation runs in cell formulas, which means every step is auditable.
Pricing and delivery
API 521 Flare Header & Knock-Out Drum Sizing β Excel is priced at βΉ2,699 (approximate USD equivalent shown in the cart). Delivery is instant β after payment you get a download link immediately and a receipt by email. One-time purchase, lifetime access, no subscriptions or hidden fees.
Payment methods: Cashfree (Indian customers) or PayPal International (customers outside India). Volume discounts are available on bundles of 5 or more spreadsheets from the same discipline β contact sales@3d-labs.com for a bundle quote.
Related tools and services
Engineers who work with API 521 Flare Header & Knock-Out Drum Sizing β Excel often also need:
- Other Chemical & Process Engineering spreadsheets from our catalogue of 17 tools in this discipline.
- Our Heat Exchanger Design Services β for projects where the calculation is only part of a larger scope and you want the full engineering deliverable produced by 3D-LABS.
- Our online training courses β instructor-led programmes on Chemical & Process Engineering topics, including software mastery and code walkthroughs.
- Our engineering e-book library β 115+ technical PDF references covering theory, practice, and code interpretation.
Frequently asked questions
What software do I need to run API 521 Flare Header & Knock-Out Drum Sizing β Excel?
The spreadsheet is delivered as a native Excel (.xlsx) file. It runs in Microsoft Excel 2016 or later on Windows and Mac. It also runs in LibreOffice Calc and Google Sheets (with import), though some formatting may shift. No macros are required β all logic runs in cell formulas so you can audit every step.
Which codes and standards does this spreadsheet follow?
API 521 Flare Header & Knock-Out Drum Sizing β Excel follows API 521. Every formula is cross-referenced to the code clause it implements, so your reviewer can trace the calculation back to the standard. If your project needs a different code, contact us β many spreadsheets are available in code-variant editions.
Are the formulas locked or editable?
All formulas are unlocked and editable. You can adapt inputs, add your own load combinations, integrate the sheet into your own workflow, and audit the logic. We do not password-protect our worksheets β an engineer should always be able to verify what the tool is doing.
What is included in the download?
The download includes: (1) the Excel calculation file with all formulas, (2) a sample worked example showing typical inputs and expected outputs, (3) a short user notes PDF explaining assumptions and code clauses used, and (4) a revision history so you can see how the sheet has been updated over time.
Do you offer support if I have questions?
Yes. Email support with any 3D-LABS spreadsheet purchase β reply within 24 hours (Mon-Sat, IST). We also offer paid tuning if you need the spreadsheet adapted to a specific project (typically USD 50-200 depending on scope). Contact info@3d-labs.com for details.
