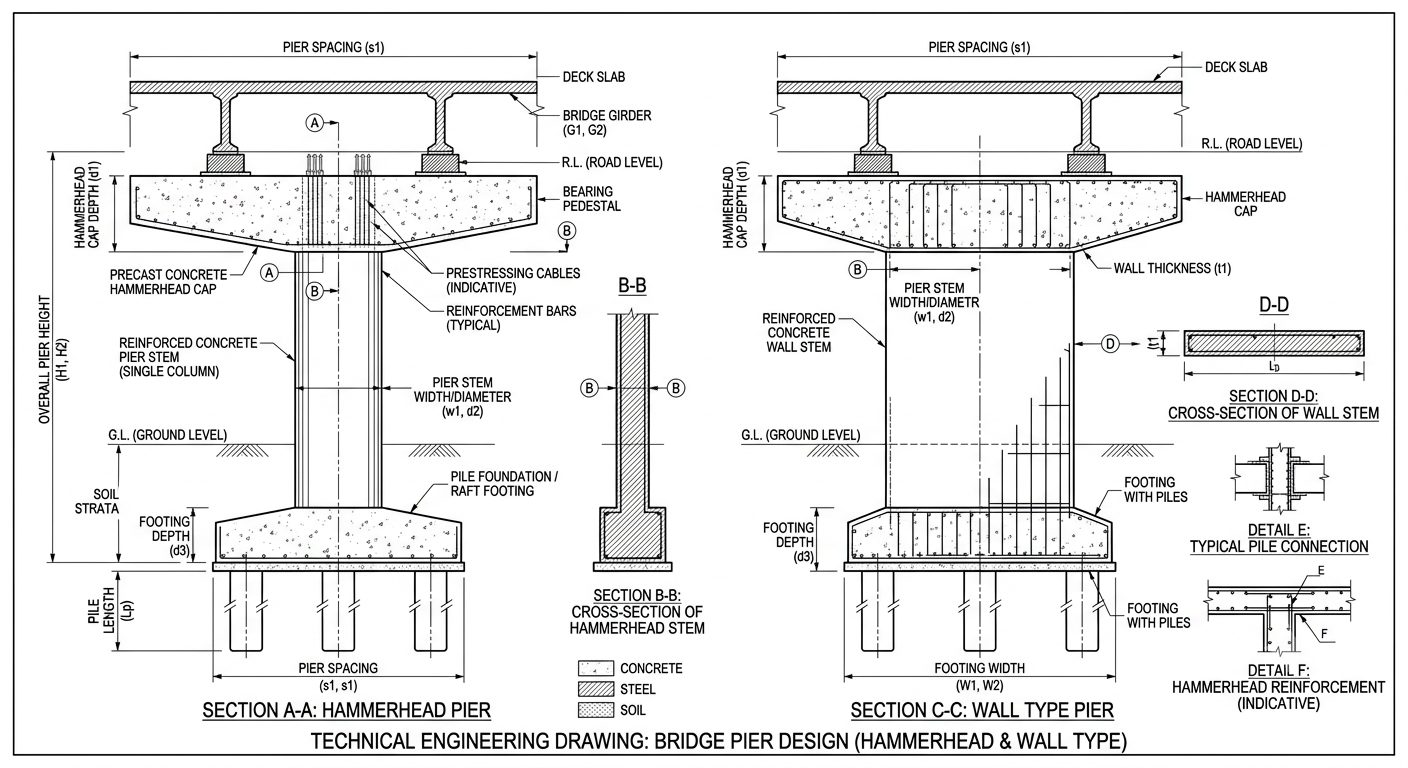

Bridge Pier Design (Hammerhead + Wall Type) β method, governing standards and output schedule
The Bridge Pier Design (Hammerhead + Wall Type) calculation analyses a bridge element for the governing combination of dead, live, wind, seismic and thermal actions, and checks the section for strength and serviceability under the applicable bridge design code. It is applied during detailed design, during design verification by a second engineer, and again during in-service assessment when the operating basis changes. Because every intermediate quantity is reported rather than only the final answer, the calculation can be checked line by line against the governing standard without re-deriving it.
This 3D-LABS workbook is built to IRC. You supply 13 inputs and the sheet reports 6 results, with every formula left visible so each figure can be traced to the clause it comes from.
Method of calculation
Live load is applied as the code vehicle or lane loading positioned for the worst effect, with impact and multiple-presence factors applied and the load distributed between girders by the distribution factor. Actions are combined at the relevant limit states, section capacity is evaluated for flexure, shear and, for prestressed sections, for the stress limits at transfer and in service, and deflection and crack width complete the serviceability assessment.
Governing standards and references
- IRC β Indian Roads Congress bridge codes, IRC 6 loads and IRC 112 concrete bridges
- AASHTO LRFD β AASHTO LRFD Bridge Design Specifications as the corresponding international practice
Each formula cites the clause it comes from on the same row as the result it produces, so a reviewer can check the sheet line by line against the standard.
Acceptance criteria
For the calculation to be reported as acceptable, all sections must satisfy the strength limit state under the governing combination, the serviceability stress, deflection and crack width limits must be met, and the bearing and joint movement capacity must cover the calculated demand.
Who uses this calculation
This calculation is used by bridge design engineers, highway authority reviewers, and contractors verifying construction-stage conditions.
What you receive
- Excel calculation file (.xlsx) β fully unlocked formulas and a clear input/output layout
- Worked example β realistic engineering values with expected outputs so you can verify the sheet against a known case
- Code references β every formula cross-referenced to IRC
- Email support β write to info@3d-labs.com with questions about inputs, methodology or results
Delivery and licence
Instant download after payment at βΉ1,699. One payment, lifetime access, no subscription. The workbook is a design aid β results must be verified by a qualified engineer before use.
What Bridge Pier Design (Hammerhead + Wall Type) β Excel Spreadsheet calculates
Bridge Pier Design (Hammerhead + Wall Type) β Excel Spreadsheet is an Excel-native engineering calculation tool built by 3D-LABS for engineers, designers, and technical consultants across disciplines. It is used for performing repeatable, verifiable engineering calculations that would otherwise require manual longhand work. Every input is labelled and every output is traceable β the sheet is designed to be checkable, not a black box.
Codes and standards followed
Bridge Pier Design (Hammerhead + Wall Type) β Excel Spreadsheet follows industry-standard Engineering codes including ASME, API, AWWA, TEMA, IS, EN, AISC, ACI, and other industry-standard codes. Each formula is cross-referenced to the applicable code clause so your reviewer can trace calculations back to the standard.
If your project requires a different code base (e.g. converting an IS-code sheet to an ASME basis), we can produce a code-variant edition on request. Contact info@3d-labs.com for a variant quote.
What is included in your download
- The Excel calculation file (.xlsx) β fully unlocked formulas, cell-level comments, and a clear input/output layout.
- A sample worked example β realistic inputs plus expected outputs so you can validate the spreadsheet against a known case.
- User notes (PDF) β assumptions, code clauses referenced, and edge-case guidance.
- Revision history β every update to the spreadsheet is logged so you know what changed and when.
- Email support β reply within 24 hours (Monday to Saturday, IST) for questions about the spreadsheet or its use.
Software requirements
Bridge Pier Design (Hammerhead + Wall Type) β Excel Spreadsheet runs in Microsoft Excel 2016 or later on Windows and Mac. It is also compatible with LibreOffice Calc and can be imported into Google Sheets (some formatting may shift). No macros are required and no external add-ins are needed β every calculation runs in cell formulas, which means every step is auditable.
Pricing and delivery
Bridge Pier Design (Hammerhead + Wall Type) β Excel Spreadsheet is priced at βΉ1,699 (approximate USD equivalent shown in the cart). Delivery is instant β after payment you get a download link immediately and a receipt by email. One-time purchase, lifetime access, no subscriptions or hidden fees.
Payment methods: Cashfree (Indian customers) or PayPal International (customers outside India). Volume discounts are available on bundles of 5 or more spreadsheets from the same discipline β contact sales@3d-labs.com for a bundle quote.
