ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress β method, governing standards and output schedule
The ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress calculation establishes the minimum pressure-design wall thickness for a pipe run and confirms that the selected schedule, after deduction of corrosion and mechanical allowances and mill undertolerance, still satisfies the code requirement. It is applied during detailed design, during design verification by a second engineer, and again during in-service assessment when the operating basis changes. Because every intermediate quantity is reported rather than only the final answer, the calculation can be checked line by line against the governing standard without re-deriving it.

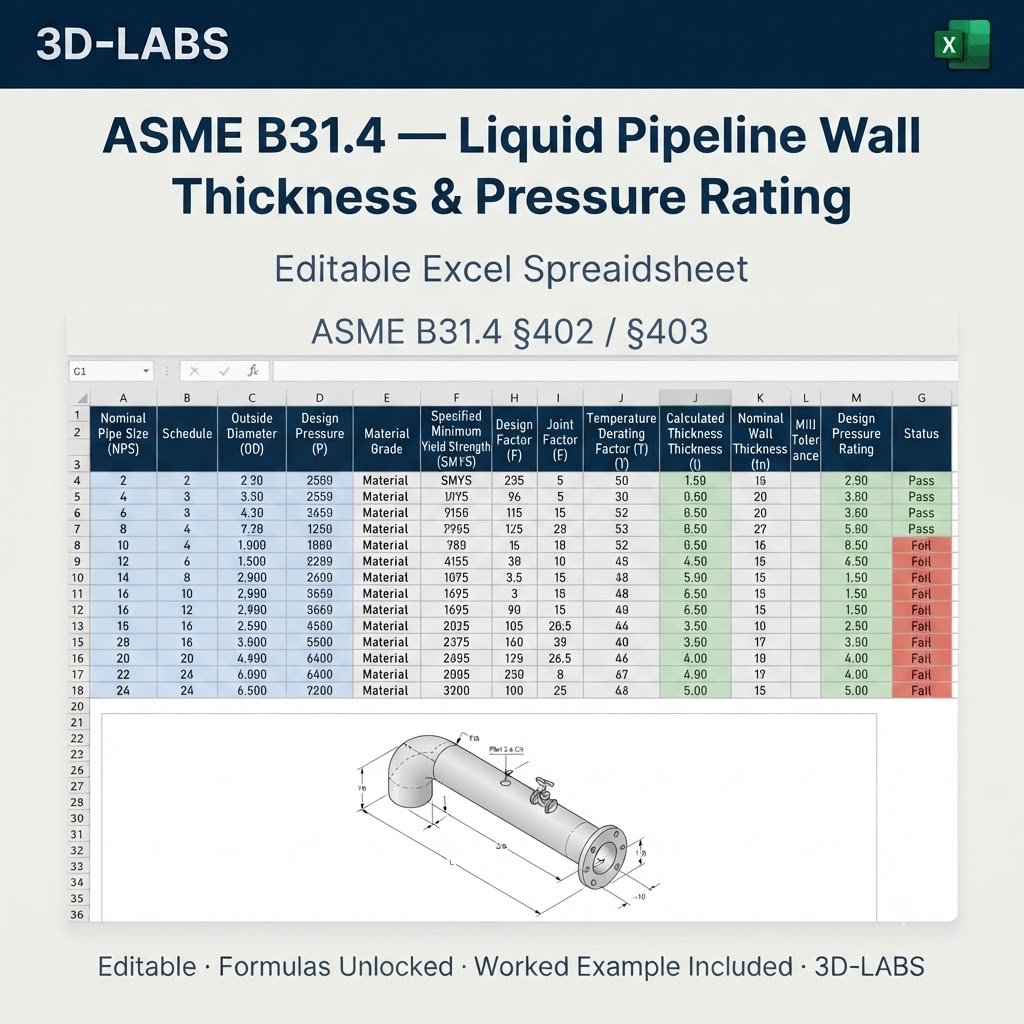

This 3D-LABS workbook is built to ASME B31.4. You supply 11 inputs and the sheet reports 6 results, with every formula left visible so each figure can be traced to the clause it comes from.
Method of calculation

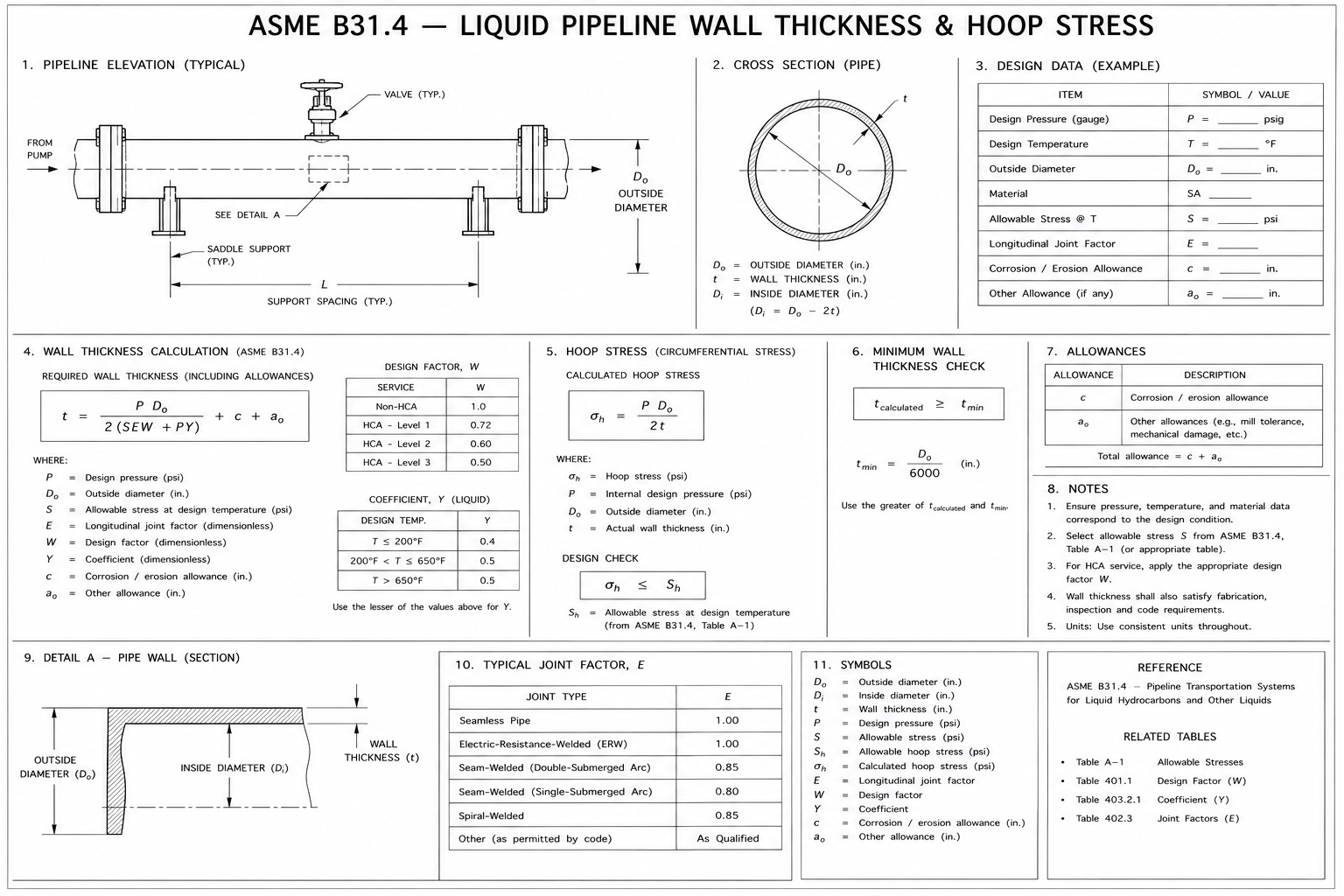

Pressure design thickness is computed as t = PΒ·D / (2Β·(SΒ·EΒ·W + PΒ·Y)) for straight pipe, with the Y coefficient taken from the code table as a function of material and temperature. Thickness for bends, branch connections and miscellaneous loadings is then added, followed by corrosion and erosion allowance and threading or grooving depth, and the total is compared with the nominal wall less mill undertolerance.
Governing standards and references
- ASME B31.4 β ASME B31.4 Pipeline Transportation Systems for Liquids and Slurries
- ASME B31.3 β ASME B31.3 Process Piping, para. 304.1.2
Each formula cites the clause it comes from on the same row as the result it produces, so a reviewer can check the sheet line by line against the standard.
Acceptance criteria
For the calculation to be reported as acceptable, the nominal wall thickness less mill undertolerance and all allowances must equal or exceed the pressure design thickness, and the MAWP at the selected schedule must cover the design pressure.
Who uses this calculation
This calculation is used by piping and pipeline engineers preparing line class documents, and integrity engineers assessing remaining thickness against code minimum.
What you receive
- Excel calculation file (.xlsx) β fully unlocked formulas and a clear input/output layout
- Worked example β realistic engineering values with expected outputs so you can verify the sheet against a known case
- Code references β every formula cross-referenced to ASME B31.4
- Email support β write to info@3d-labs.com with questions about inputs, methodology or results
Delivery and licence
Instant download after payment at βΉ3,999. One payment, lifetime access, no subscription. The workbook is a design aid β results must be verified by a qualified engineer before use.
What ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress β Excel calculates
ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress β Excel is an Excel-native engineering calculation tool built by 3D-LABS for mechanical, design, and equipment engineers working with pressure equipment, rotating machinery, and mechanical systems. It is used for sizing pressure vessels, heat exchangers, flanges, bolts, and other mechanical components. Every input is labelled and every output is traceable β the sheet is designed to be checkable, not a black box.
Codes and standards followed
ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress β Excel follows ASME B31.4. Each formula in the spreadsheet is cross-referenced to the specific code clause it implements β you can trace any calculation back to the underlying standard, which is essential for design review and regulatory sign-off.
If your project requires a different code base (e.g. converting an IS-code sheet to an ASME basis), we can produce a code-variant edition on request. Contact info@3d-labs.com for a variant quote.
What is included in your download
- The Excel calculation file (.xlsx) β fully unlocked formulas, cell-level comments, and a clear input/output layout.
- A sample worked example β realistic inputs plus expected outputs so you can validate the spreadsheet against a known case.
- User notes (PDF) β assumptions, code clauses referenced, and edge-case guidance.
- Revision history β every update to the spreadsheet is logged so you know what changed and when.
- Email support β reply within 24 hours (Monday to Saturday, IST) for questions about the spreadsheet or its use.
Software requirements
ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress β Excel runs in Microsoft Excel 2016 or later on Windows and Mac. It is also compatible with LibreOffice Calc and can be imported into Google Sheets (some formatting may shift). No macros are required and no external add-ins are needed β every calculation runs in cell formulas, which means every step is auditable.
Pricing and delivery
ASME B31.4: Liquid Pipeline Wall Thickness & Hoop Stress β Excel is priced at βΉ3,999 (approximate USD equivalent shown in the cart). Delivery is instant β after payment you get a download link immediately and a receipt by email. One-time purchase, lifetime access, no subscriptions or hidden fees.
Payment methods: Cashfree (Indian customers) or PayPal International (customers outside India). Volume discounts are available on bundles of 5 or more spreadsheets from the same discipline β contact sales@3d-labs.com for a bundle quote.
