Wave Spectrum Analysis: JONSWAP / Pierson-Moskowitz β method, governing standards and output schedule
The Wave Spectrum Analysis: JONSWAP / Pierson-Moskowitz calculation characterises the sea state by fitting a standard wave energy spectrum to the significant wave height and peak period, and derives the spectral parameters used in downstream response analysis. It is applied during detailed design, during design verification by a second engineer, and again during in-service assessment when the operating basis changes. Because every intermediate quantity is reported rather than only the final answer, the calculation can be checked line by line against the governing standard without re-deriving it.
This 3D-LABS workbook is built to DNV-RP-C205. You supply 11 inputs and the sheet reports 5 results, with every formula left visible so each figure can be traced to the clause it comes from.
Method of calculation

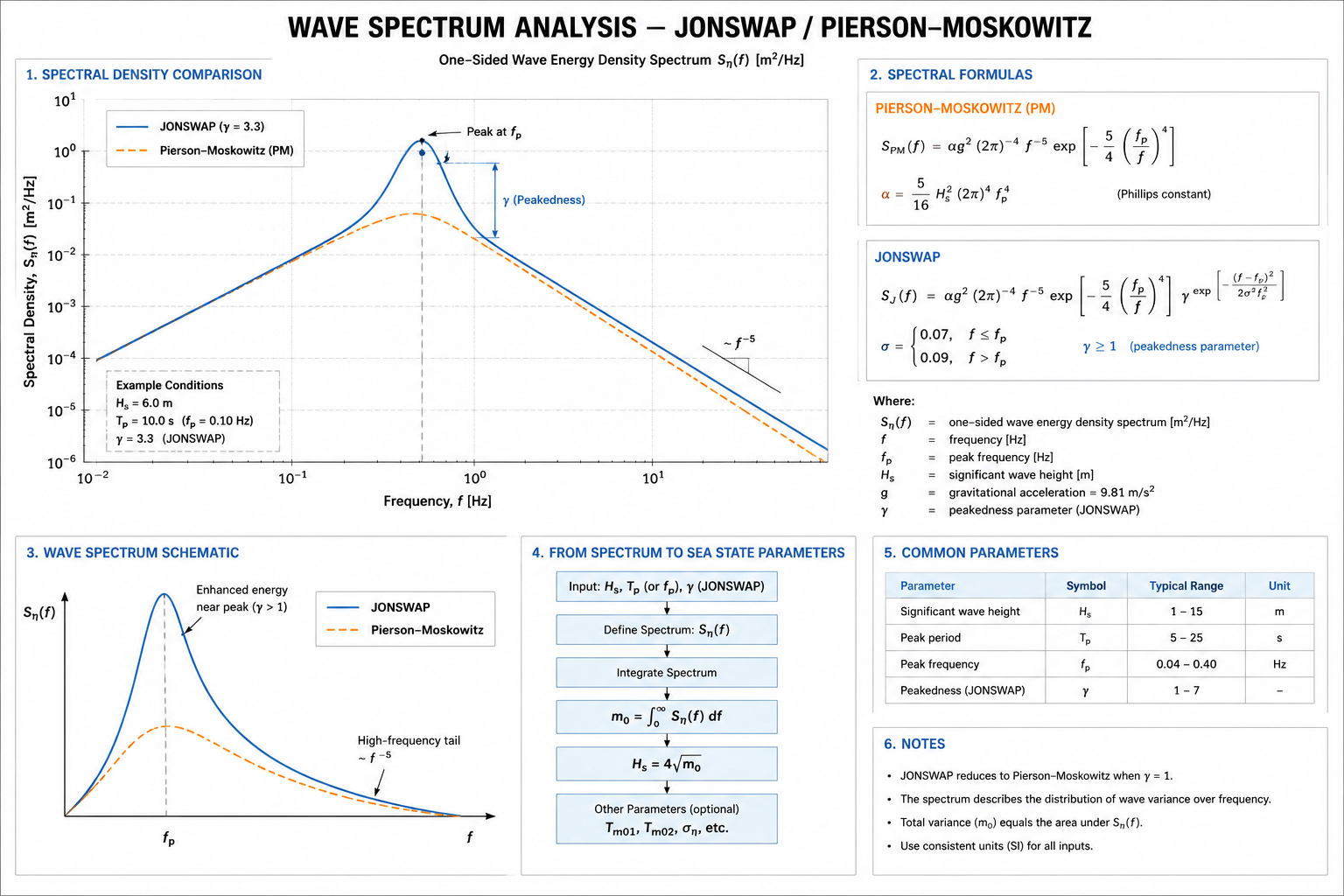

The spectral density is formed from the selected parameterisation: Pierson-Moskowitz for a fully developed sea, or JONSWAP with the peak enhancement factor and spectral width parameters for a fetch-limited sea. Spectral moments are integrated numerically from the density function, and the characteristic values follow from them: significant wave height from the zeroth moment, mean zero-crossing and peak periods from the moment ratios, and the bandwidth parameter. The resulting spectrum is tabulated for use as the excitation in a response calculation.
Governing standards and references
- DNV-RP-C205 β DNV-RP-C205 Environmental conditions and environmental loads, wave spectra
- ISO 19901-1 β ISO 19901-1 Metocean design and operating considerations
- Hasselmann JONSWAP β Hasselmann et al. (1973), JONSWAP spectral formulation
Each formula cites the clause it comes from on the same row as the result it produces, so a reviewer can check the sheet line by line against the standard.
Acceptance criteria
For the calculation to be reported as acceptable, the fitted spectrum must reproduce the specified significant wave height and peak period within the tolerance adopted, and the peak enhancement factor must lie within the range appropriate to the fetch and duration of the design sea state.
Who uses this calculation
This calculation is used by offshore and marine engineers defining design sea states, naval architects performing motion and fatigue analysis, and metocean specialists reviewing environmental design bases.
What you receive
- Excel calculation file (.xlsx) β fully unlocked formulas and a clear input/output layout
- Worked example β realistic engineering values with expected outputs so you can verify the sheet against a known case
- Code references β every formula cross-referenced to DNV-RP-C205
- Email support β write to info@3d-labs.com with questions about inputs, methodology or results
Delivery and licence
Instant download after payment at βΉ2,599. One payment, lifetime access, no subscription. The workbook is a design aid β results must be verified by a qualified engineer before use.
