Description
OHTL Wind + Ice Loading on Conductor β method, governing standards and output schedule
The OHTL Wind + Ice Loading on Conductor calculation establishes the transverse wind and radial ice loads acting on an overhead line conductor and the resulting tension and support reactions, for the reliability level and terrain category selected. It is applied during detailed design, during design verification by a second engineer, and again during in-service assessment when the operating basis changes. Because every intermediate quantity is reported rather than only the final answer, the calculation can be checked line by line against the governing standard without re-deriving it.

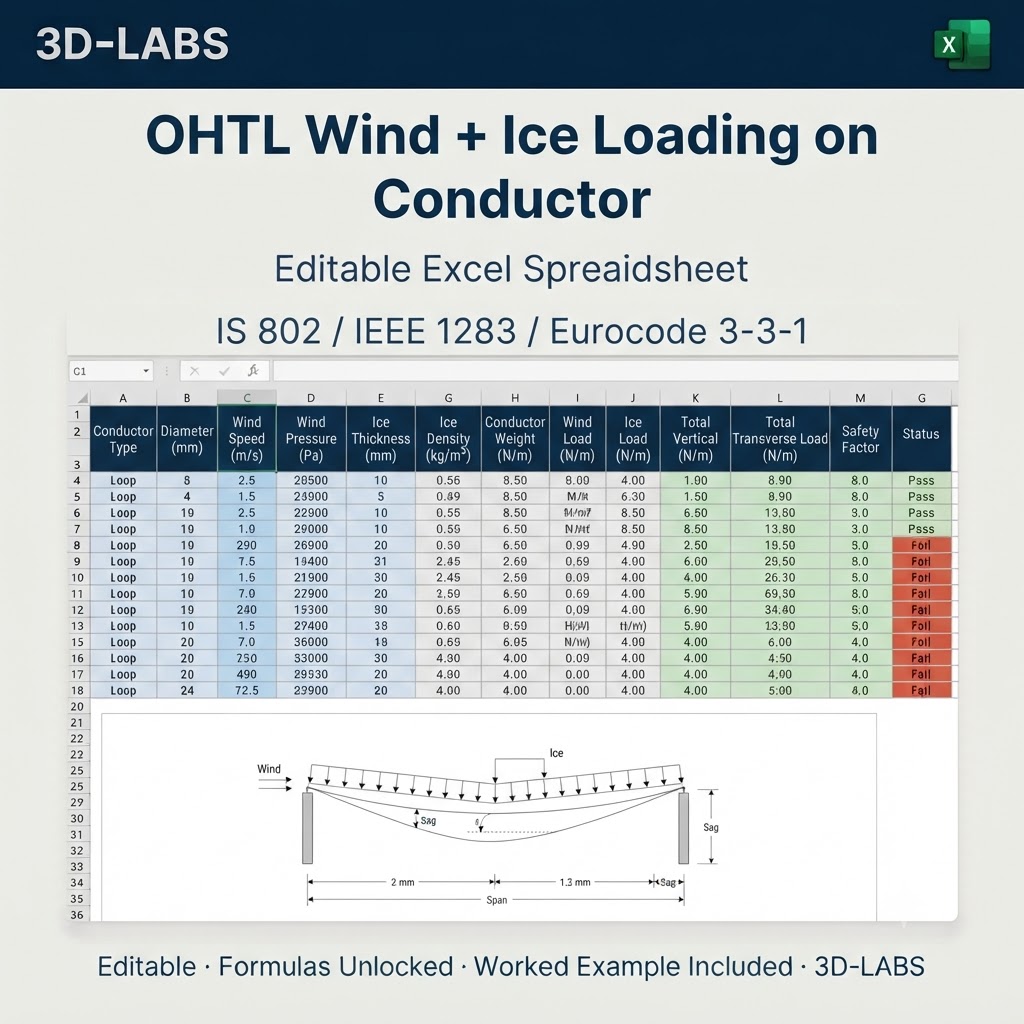

This 3D-LABS workbook is built to IS 802-1. You supply 12 inputs and the sheet reports 6 results, with every formula left visible so each figure can be traced to the clause it comes from.
Method of calculation

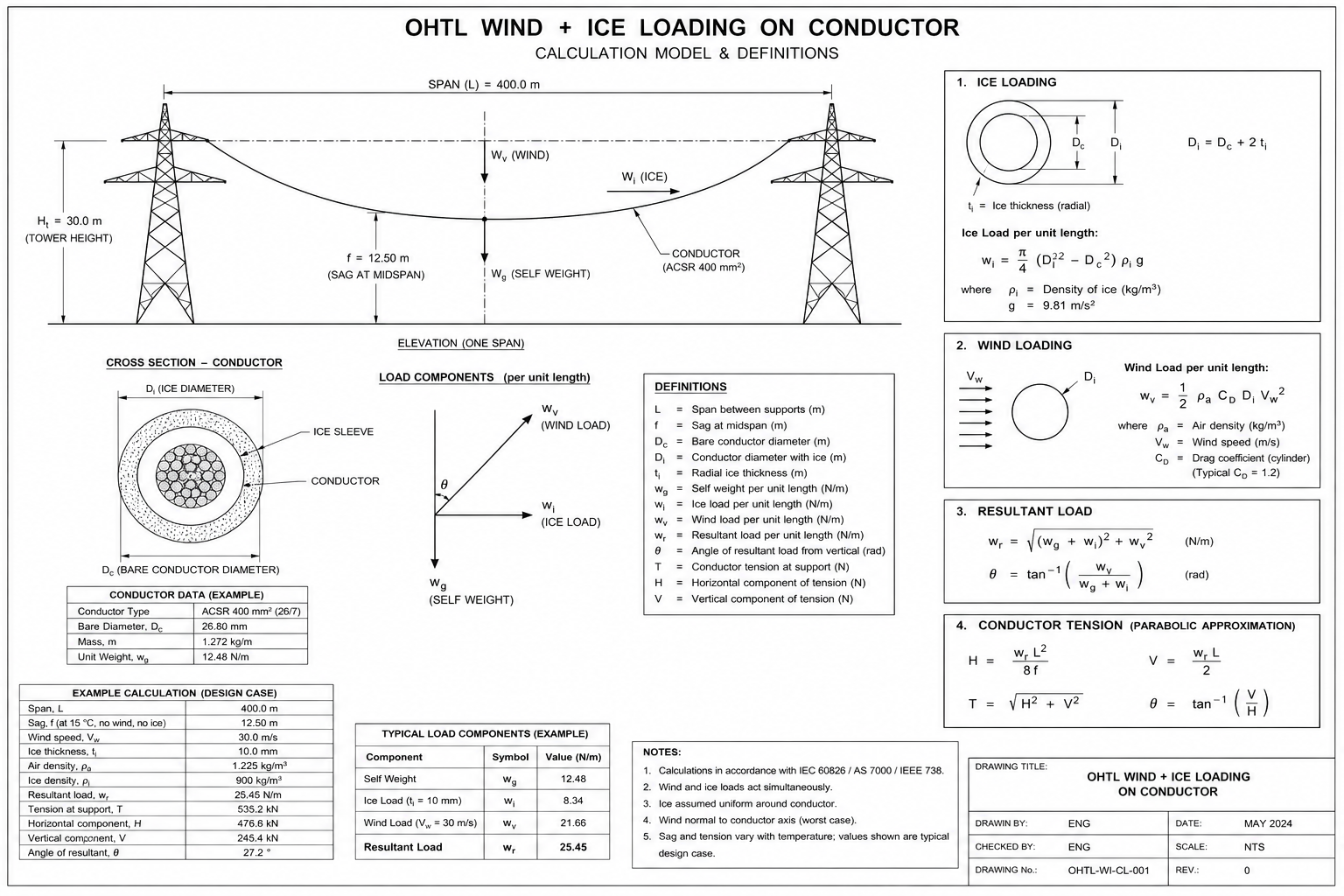

Reference wind speed for the return period is converted to a design wind pressure through terrain, height and span factors, and applied to the projected area of the bare or ice-accreted conductor. Radial ice thickness gives the added weight per unit length, and the wind and weight components are combined vectorially into a resultant load. The resultant is applied to the conductor catenary to obtain tension, and the transverse, vertical and longitudinal reactions on the supporting structure are reported for each load case.
Governing standards and references
- IS 802-1 β IS 802 (Part 1/Sec 1) Overhead transmission line towers, loads
- IEC 60826 β IEC 60826 Design criteria of overhead transmission lines
- ASCE MOP 74 β ASCE Manual of Practice 74, Guidelines for electrical transmission line structural loading
Each formula cites the clause it comes from on the same row as the result it produces, so a reviewer can check the sheet line by line against the standard.
Acceptance criteria
For the calculation to be reported as acceptable, conductor tension under the governing combined wind-and-ice case must remain below the specified percentage of the rated tensile strength, and the resultant transverse and vertical reactions must not exceed the design capacity of the supporting structure.
Who uses this calculation
This calculation is used by transmission line engineers setting conductor and tower loading, utility design departments preparing tower schedules, and reviewers checking line design against the reliability level adopted.
What you receive
- Excel calculation file (.xlsx) β fully unlocked formulas and a clear input/output layout
- Worked example β realistic engineering values with expected outputs so you can verify the sheet against a known case
- Code references β every formula cross-referenced to IS 802-1
- Email support β write to info@3d-labs.com with questions about inputs, methodology or results
Delivery and licence
Instant download after payment at βΉ1,199. One payment, lifetime access, no subscription. The workbook is a design aid β results must be verified by a qualified engineer before use.
What OHTL Wind + Ice Loading on Conductor β Excel calculates
OHTL Wind + Ice Loading on Conductor β Excel is an Excel-native engineering calculation tool built by 3D-LABS for engineers, designers, and technical consultants across disciplines. It is used for performing repeatable, verifiable engineering calculations that would otherwise require manual longhand work. Every input is labelled and every output is traceable β the sheet is designed to be checkable, not a black box.
Codes and standards followed
OHTL Wind + Ice Loading on Conductor β Excel follows industry-standard Engineering codes including ASME, API, AWWA, TEMA, IS, EN, AISC, ACI, and other industry-standard codes. Each formula is cross-referenced to the applicable code clause so your reviewer can trace calculations back to the standard.
If your project requires a different code base (e.g. converting an IS-code sheet to an ASME basis), we can produce a code-variant edition on request. Contact info@3d-labs.com for a variant quote.
What is included in your download
- The Excel calculation file (.xlsx) β fully unlocked formulas, cell-level comments, and a clear input/output layout.
- A sample worked example β realistic inputs plus expected outputs so you can validate the spreadsheet against a known case.
- User notes (PDF) β assumptions, code clauses referenced, and edge-case guidance.
- Revision history β every update to the spreadsheet is logged so you know what changed and when.
- Email support β reply within 24 hours (Monday to Saturday, IST) for questions about the spreadsheet or its use.
Software requirements
OHTL Wind + Ice Loading on Conductor β Excel runs in Microsoft Excel 2016 or later on Windows and Mac. It is also compatible with LibreOffice Calc and can be imported into Google Sheets (some formatting may shift). No macros are required and no external add-ins are needed β every calculation runs in cell formulas, which means every step is auditable.
Pricing and delivery
OHTL Wind + Ice Loading on Conductor β Excel is priced at βΉ1,199 (approximate USD equivalent shown in the cart). Delivery is instant β after payment you get a download link immediately and a receipt by email. One-time purchase, lifetime access, no subscriptions or hidden fees.
Payment methods: Cashfree (Indian customers) or PayPal International (customers outside India). Volume discounts are available on bundles of 5 or more spreadsheets from the same discipline β contact sales@3d-labs.com for a bundle quote.
