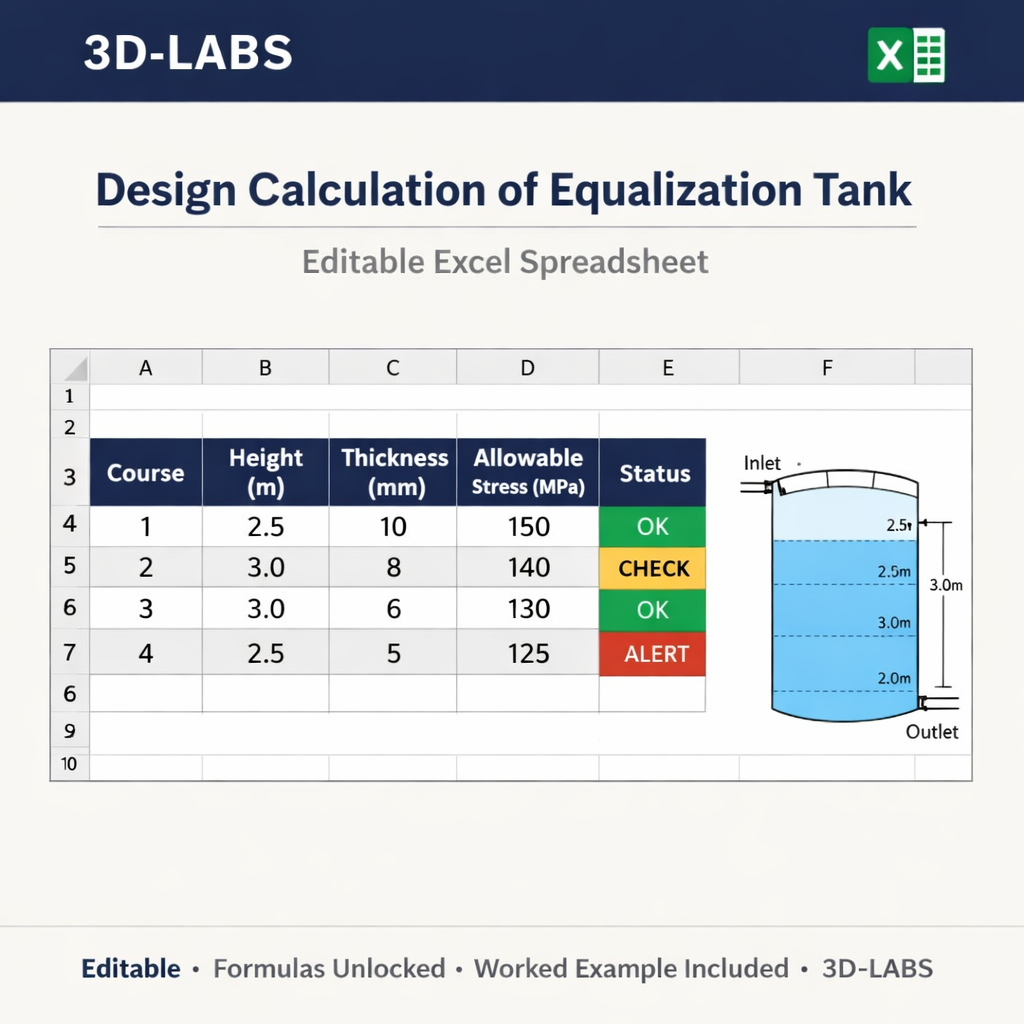

design calculation of equalization tank

₹80,000.00

In this calculation we are going to design equalization tank, for that I am using AWWA D103-09 specification code. Tank properties are (tank diameter D= 10310mm, tank height h = 8450mm, overflow height H =8130mm). this design of storage tank made for the location of QATAR .in this calculation we are taking design parameters , wind load as 45 m/s, and seismic zone II , in this calculation we have shell design , roof design, wind Girder ,bolt design and anchor bolt design. All the design done by AWWA D 103-09.
