UPS Sizing & Battery Autonomy calculation spreadsheet to IEEE 1184 / IEC 62040
This ups sizing calculation workbook by 3D-LABS covers load profile, kVA/kW rating, autonomy and charger. You enter 15 design inputs and the sheet returns 12 key results with pass/fail checks, every formula visible and traceable to IEEE 1184 / IEC 62040. It is a ready-to-use Excel file for electrical engineers, checkers and students who need a clear, auditable calculation rather than a black-box program.
Calculation steps
- Load & Kva Rating & Battery & Charger
- Load Aggregation, Module Selection And Dc Energy Requirement
- Load Aggregation
- Ups Module Selection
- Battery Sizing
- Charger & Heat
Results you get
- Connected load (kW)
- Design load (kW)
- Required kVA (kVA)
- Modules installed
- Installed capacity (kVA)
- Module loading (%)
- DC current (A)
- Required Ah (Ah)
- Selected battery (Ah)
- Charger rating (A)
- Heat rejection (kW)
- Autonomy check
Codes and references
- IEEE 1184 — Guide for Batteries for Uninterruptible Power Supply Systems (2006)
- IEC 62040-3 — Uninterruptible power systems — Method of specifying performance (2021)
- IEEE 446 (Orange Book) — Emergency and Standby Power Systems (1995)
- IEEE 485 — Sizing Lead-Acid Batteries (companion) (2020)
- NFPA 70 Art. 645 — Information Technology Equipment (2023)
What’s included
- Editable Excel workbook (.xlsx) — UPS-Sizing-and-Charger-Calculation.xlsx
- Cover sheet with document number, revision and 3D-LABS title block

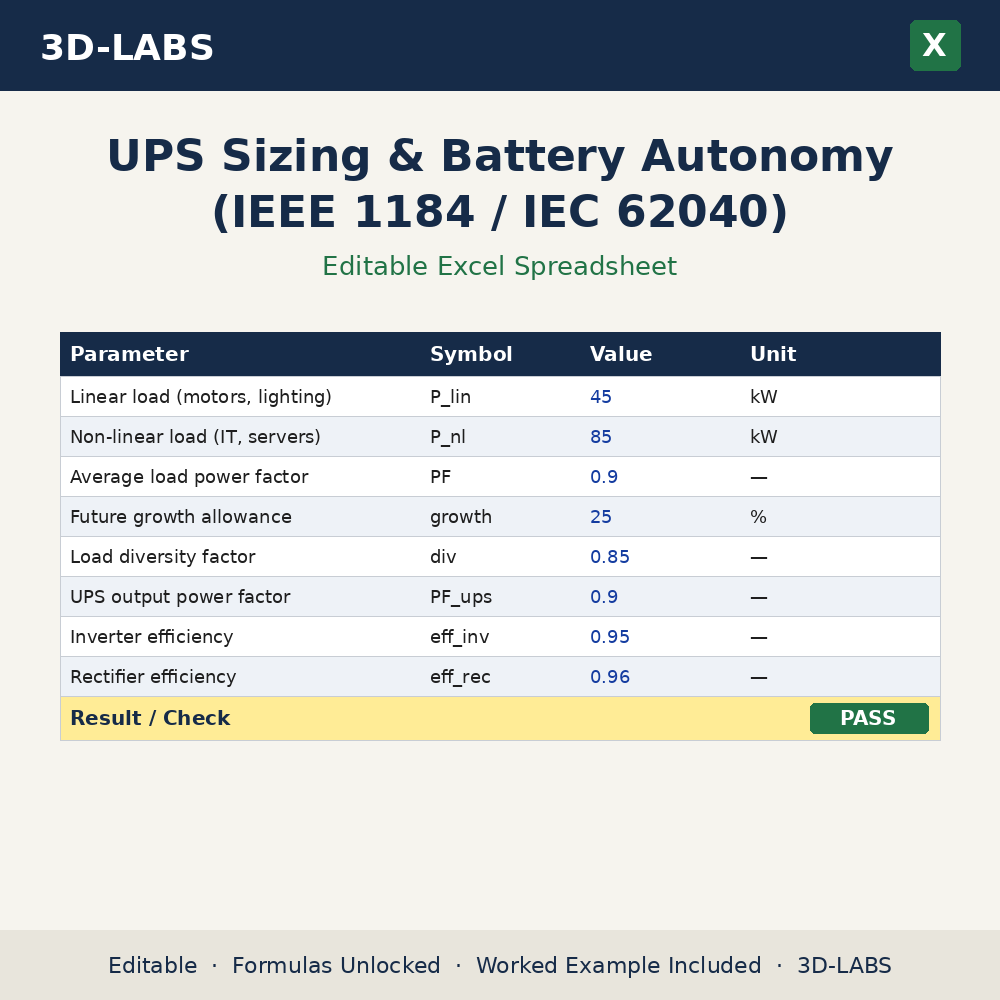

- Calculation sheet: colour-coded inputs (blue), formulas (black) and key results (yellow)
- Reference sheet listing the governing standards and editions
- Worked example pre-filled with realistic values
- One-click print to PDF for submission and checking
Frequently asked questions
Can I edit the formulas?
Yes. All cells are unlocked, so you can adapt the ups sizing & battery autonomy calculation to your own project standards.
Which software do I need?
Microsoft Excel 2016 or later, or any compatible spreadsheet (LibreOffice, Google Sheets).
How do I receive the file?
The download link appears immediately after payment and is also emailed to you.
Is it a substitute for engineering review?
No. The sheet is a design aid — results must be verified by a qualified engineer before use.
