BESS Thermal Management & Fire Separation calculation spreadsheet to NFPA 855
This nfpa 855 bess separation calculation workbook by 3D-LABS covers heat rejection, spacing and deflagration venting. You enter 19 design inputs and the sheet returns 12 key results with pass/fail checks, every formula visible and traceable to NFPA 855. It is a ready-to-use Excel file for energy storage engineers, checkers and students who need a clear, auditable calculation rather than a black-box program.
Calculation steps
- Heat Rejection & Hvac & Separation & Venting
- Steady-State Enclosure Heat Balance And Nfpa 855 Separation Criteria
- Heat Generation
- Hvac Sizing
- Fire Separation (Nfpa 855 Ch. 4)
- Deflagration Venting & Detection
Results you get
- Battery heat loss (kW)
- Solar gain (kW)
- Conduction gain (kW)
- Total cooling load (kW)
- HVAC per container (TR)
- Plant cooling load (kW)
- Parasitic fraction (%)
- Total energy (MWh)
- Required separation (m)
- Site footprint (m²)
- Required vent area (m²)
- Overall compliance
Codes and references
- NFPA 855 — Standard for the Installation of Stationary Energy Storage Systems (2023)
- UL 9540A — Test Method for Evaluating Thermal Runaway Fire Propagation in BESS (2019)
- NFPA 68 — Standard on Explosion Protection by Deflagration Venting (2023)
- NFPA 69 — Standard on Explosion Prevention Systems (2024)
- IEC 62933-5-2 — Safety requirements for grid-integrated EES (2020)
What’s included
- Editable Excel workbook (.xlsx) — BESS-Thermal-and-Fire-Separation-NFPA-855.xlsx
- Cover sheet with document number, revision and 3D-LABS title block
- Calculation sheet: colour-coded inputs (blue), formulas (black) and key results (yellow)
- Reference sheet listing the governing standards and editions

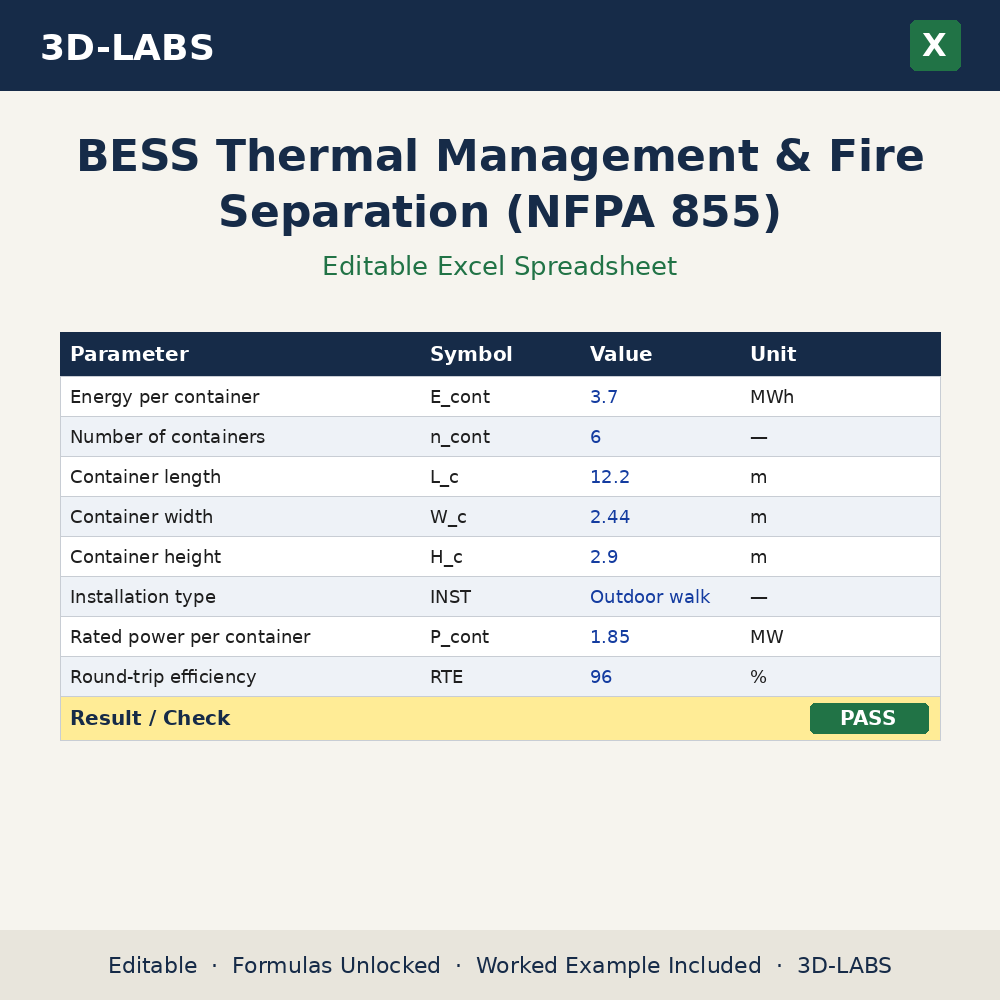

- Worked example pre-filled with realistic values
- One-click print to PDF for submission and checking
