This design is open to customization!

Share your envisioned modifications with us, allowing us to generate a design service estimate for you. Simply press the button to send your pricing request. Please mention plan number.

MODIFY THIS PLAN

PLAN NUMBER:- 102

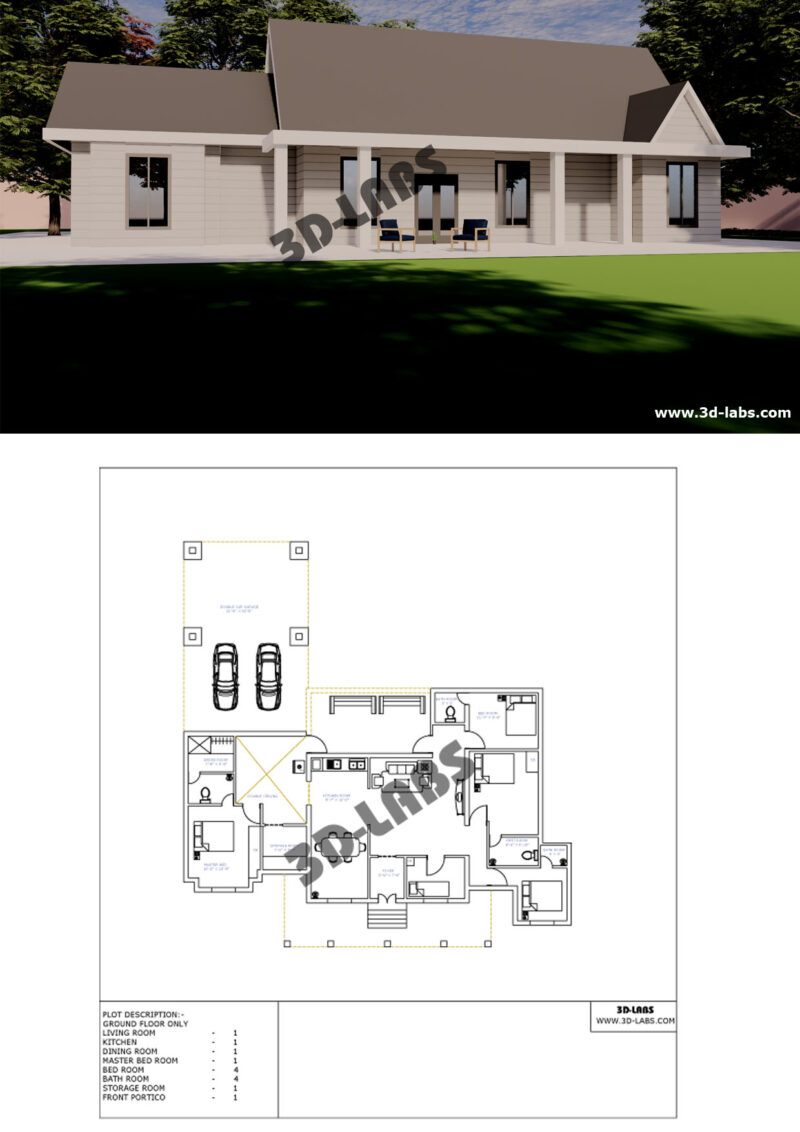

PLAN DESCRIPTION

Basic Features

Ground Floor & Upper Floor

LIVING ROOM – 1
KITCHEN AND DINING – 1
MASTER BED ROOM – 1
GUEST ROOM – 1
NORMAL BED ROOM – 2
CAR PARKING – 1
BATH ROOMS – 3
FRONT PORCH & SIDE PORCH – 1

Dimensions

Length :39′-10″Width  : 65′-2″

Height : 10′

Area

Total 3900 Sq/Ft

Ground Floor 3900 sq/ft

WHAT’S INCLUDED IN THIS PLAN SET

• Cover Sheet – May include index, front view of home, definitions, etc.
• Dimensioned Floor Plan –
• Exterior Views – Two exterior views of the residence with other miscellaneous details.
• Roof Plan – Birds eye view showing all ridges, valleys and other necessary information

ADDITIONAL WORK PRICING

Plan Options

Foundation Plan

$80

Usually comprises a foundation plan complete with dimensions and specific footing information.

Electrical Plan

$80

Shows all essential electrical components, including lighting fixtures, outlets, and other required items, which may also be indicated on the Dimensioned Floor Plan

Wall Section

$80

Elaboration on wall materials and their construction.

Building Section

$80

Cross-section of the residence providing vital framing details and miscellaneous data.

Additional Construction Sets

$80

Extra printed copies of the blueprint

Audio Video Design

$80

Get an overlay sheet indicating recommended positions for audio and video component.

Material List

$80

Access a construction materials spreadsheet required for building the foundation of your new home. Please be aware that the materials list does not account for additional options like alternative foundations and framing.
