This Cable Tray + Ladder Loading + Span spreadsheet from 3D-LABS follows IEC 61537 and gives instant, checkable results for practising engineers — no manual derivation required.

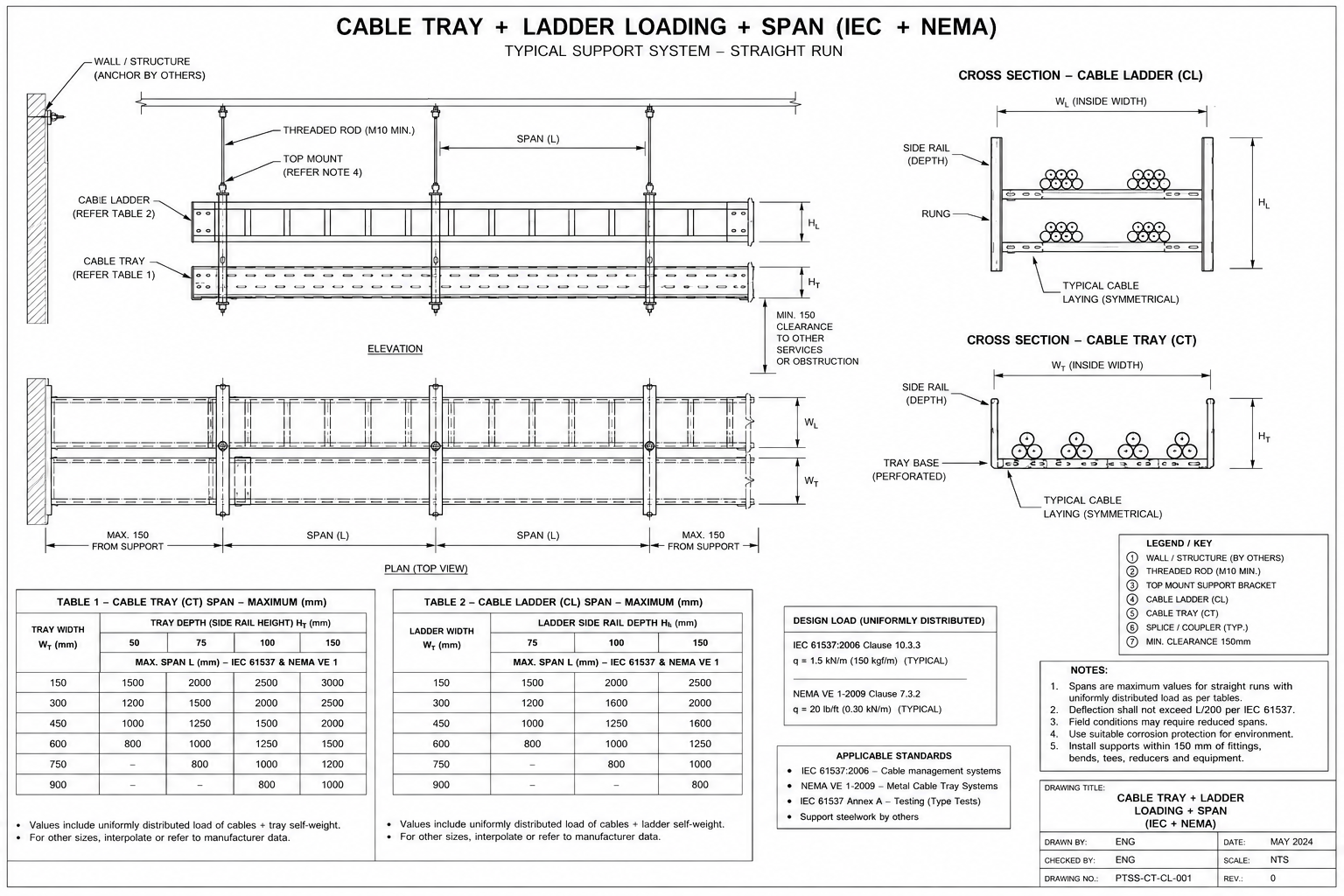

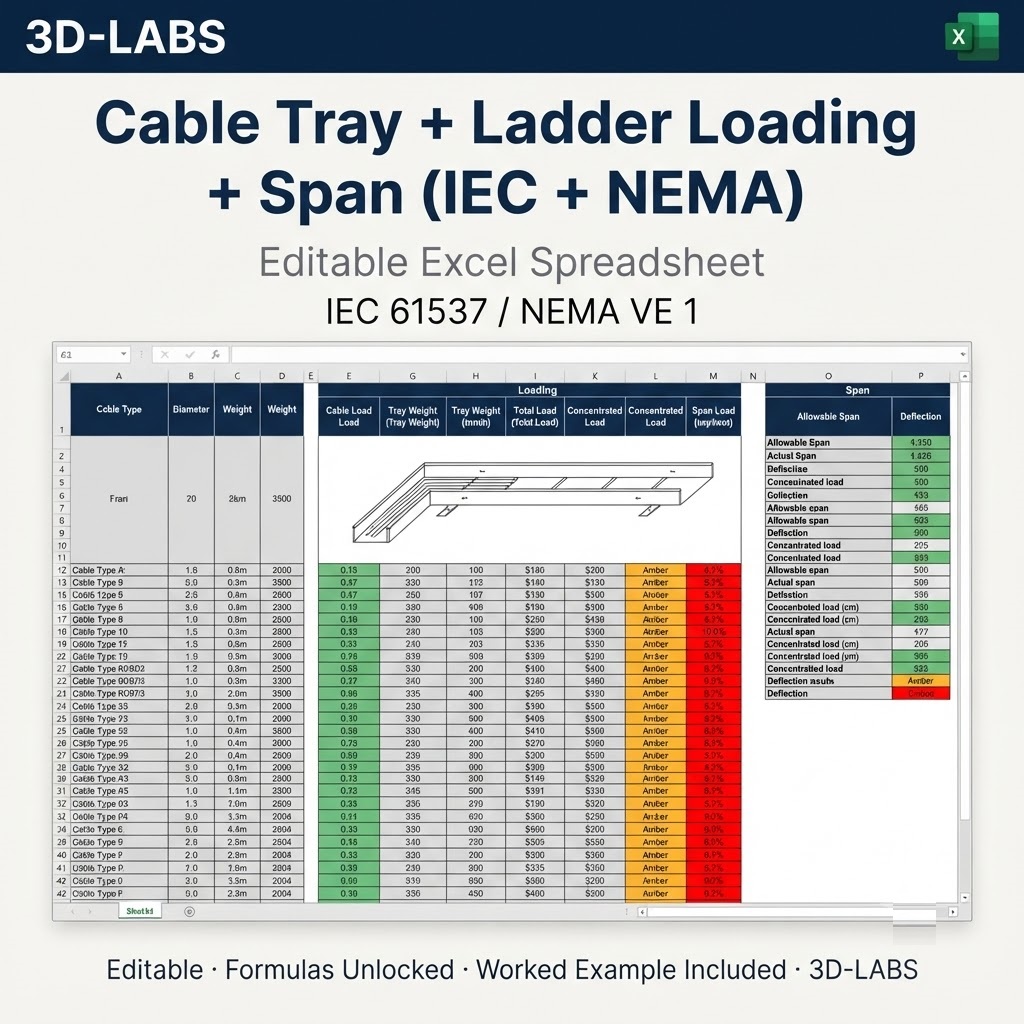

This Excel spreadsheet calculates cable tray and cable ladder structural loading, maximum allowable span, and deflection per IEC 61537:2023 (Cable management — Cable tray systems and cable ladder systems) and NEMA VE 1-2017 (Metal Cable Tray Systems). It is the standard calculation for electrical engineers specifying cable tray in industrial plants, data centres, and commercial buildings.
What standard does this calculation follow?
IEC 61537:2023 (Cable management — Cable tray systems and cable ladder systems), NEMA VE 1-2017 (Metal Cable Tray Systems), BS EN 61537:2007+A1:2011 (UK/European equivalent), and NEC Article 392 (National Electrical Code) for fill capacity.
What formula is used?
Maximum allowable span: L = √(8 × M_allow / w_total), where M_allow = allowable bending moment of tray (N·mm from manufacturer test data), w_total = total uniform load per unit length (N/mm) = cable weight + tray self-weight. Deflection: δ = 5wL⁴/(384EI) ≤ L/100 per IEC 61537. Load capacity check: w_cables ≤ (L_test × UL_factor) × M_allow/L²_actual.
Frequently Asked Questions
What standard governs cable tray span and load calculations?
IEC 61537:2023 governs cable tray load and span calculations internationally. NEMA VE 1-2017 is used for North American projects. Both require the tray to support its rated load (in N/m or lb/ft) at the specified span without exceeding L/100 deflection. Manufacturer test certificates (from IEC 61537 Clause 8) are the basis for allowable load values.
What is the maximum deflection allowed for cable tray per IEC 61537?
IEC 61537:2023 Clause 7.2 requires that deflection under rated load at maximum span does not exceed span/100 (L/100). For a 3-metre span, maximum deflection = 30 mm. This prevents cable damage from long-term sag and maintains seismic integrity of the cable route.
How is cable weight per metre calculated for tray loading?
Cable weight (kg/m) is taken from IEC 60502-1 (0.6/1 kV cables) or IEC 60227 (light-duty) cable data sheets. For filled trays, total cable weight = Σ(n × cable_weight_per_m) for all cables in tray. A common conservative assumption is 30% fill of tray cross-sectional area (per NEC Article 392) which limits cable bundle depth to 150mm in 300mm wide trays.
What’s Included
An instant Excel download with the complete formula set, a worked numerical example, and reference to the governing standard — ready to adapt to your own project inputs.
